When designing optical systems, illuminated architectural columns, industrial sight glasses, or luxury retail display fixtures, engineers and procurement specialists frequently evaluate whether clear acrylic (PMMA) tubing can truly replace traditional glass. The short answer is yes: high-grade polymethyl methacrylate tubing matches and in several key optical metrics surpasses standard soda-lime glass in transparency, while offering dramatic advantages in shatter resistance, weight reduction, and machining versatility.
However, selecting between acrylic and glass tubing requires an understanding of their fundamental optical physics, manufacturing processes (cast vs. extruded acrylic), and environmental operating limits. This technical guide delivers an in-depth comparison to assist engineers, fabricators, and commercial buyers in specifying the right material for their exact application.
1. Optical Physics: Light Transmission, Clarity, and Edge Color
Transparent acrylic tubing is celebrated for its crystal-clear light path. Comparing the optical properties of optical-grade PMMA and standard glass reveals why acrylic is widely chosen for visual and lighting applications:
Light Transmission Rate (92% to 93%): Virgin PMMA polymer transmits approximately 92% to 93% of visible light across a 3mm to 10mm wall thickness. In comparison, standard soda-lime float glass achieves only 88% to 91% transmission due to internal iron impurities. Acrylic allows more usable light to pass through with virtually zero color distortion.
Refractive Index (1.49 vs. 1.52): Acrylic possesses a refractive index of 1.49, exceptionally close to optical glass (1.50–1.52). This provides clear visual depth and high optical brilliance without distorting enclosed products, LED lighting elements, or liquid flows.
Absence of Green Edge Tint: Standard glass contains iron oxide, producing a prominent dark-green hue along thick walls, cut ends, and polished edges. Pure acrylic tubing is entirely water-clear, maintaining neutral color purity regardless of tube diameter or wall thickness—a critical aesthetic requirement for museum showcases and luxury merchandise cylinders.
UV Stability and Long-Term Non-Yellowing: High-purity acrylic naturally resists UV degradation. Unlike polycarbonate (which degrades and turns yellow over time without heavy UV coatings), PMMA maintains high optical clarity for 10 to 15+ years in outdoor environments without noticeable solarization or hazing.
2. Manufacturing Classifications: Cast vs. Extruded Acrylic Tubing
Not all acrylic tubing is identical. Industrial PMMA tubes are manufactured via two distinct production methods, each catering to specific performance and budgetary criteria:
Cast Acrylic Tubing (Centrifugal / Cell Cast): Cast tubes are produced by pouring liquid MMA monomer into precision rotating cylindrical molds and polymerizing under precise thermal control. This batch process results in ultra-high molecular weight, zero internal orientation stress, outstanding optical clarity, and the ability to produce heavy wall thicknesses (up to 20mm–50mm+) and large diameters (OD up to 1000mm+). Cast tubing is preferred for pressure cylinders, sight gauges, precision CNC machining, and diamond-polished luxury displays.
Extruded Acrylic Tubing (Continuous Tooling): Extruded tubes are continuously formed by pushing molten PMMA pellets through calibrated annular dies and cooling calibrators. This high-volume method offers tight dimensional wall tolerances and high cost-efficiency, making it the industry standard for LED light diffuser sleeves, POP retail display risers, and packaging cylinders.
3. Engineering Comparison: Acrylic Tube vs. Glass Tube
Performance Metric | Acrylic Tubing (PMMA) | Standard Glass Tubing (Soda-Lime) |
Light Transmission (Visible Spectrum) | >92% to 93% (Superior clarity) | 88% to 91% (Slightly lower) |
Specific Gravity / Weight | 1.19 g/cm³ (Approx. 50% the weight of glass) | 2.50 g/cm³ (Twice as heavy) |
Impact Resistance & Shatter Safety | 10x to 17x greater impact strength than glass; shatter-resistant | Extremely brittle; breaks into sharp, hazardous shards |
Refractive Index | 1.49 (Zero green edge tint; water-clear) | 1.51 to 1.52 (Noticeable green tint on thick walls) |
Machinability & Fabrication | Easily cut, drilled, tapped, CNC routed, glued, and polished | Requires specialized diamond cutting, flame annealing, and grinding |
Continuous Operating Temperature | 70°C to 85°C (158°F to 185°F) | 400°C+ (Superior high-heat resistance) |
Surface Pencil Hardness | 2H to 3H (Can be hard-coated up to 4H–6H) | 6H to 7H Mohs (Inherent scratch resistance) |
UV & Weathering Resistance | Inherent UV stability; non-yellowing outdoors for 10+ years | Excellent UV stability (Inorganic material) |
4. Where Acrylic Tubing Outperforms Glass
In commercial and industrial engineering, acrylic tubing is widely specified to solve the major practical drawbacks of glass:
1. Safety and Liability Reduction: In public architectural spaces, food processing plants, theme parks, and retail stores, broken glass presents severe liability and injury hazards. Acrylic does not shatter into dangerous razor-sharp shards upon impact.
2. Lightweight Structural Efficiency: At half the weight of glass, large-diameter acrylic tubes (such as 200mm–500mm columns) drastically reduce structural load requirements, freight costs, and on-site crane/rigging installation labor.
3. Custom Fabrication and Joining: Acrylic tubes can be drilled with standard metalworking tools, threaded, flanged, and seamlessly solvent-welded to acrylic base plates with optically clear joints—operations that are difficult, fragile, or cost-prohibitive in glass.
5. Where Glass Remains Necessary
For full engineering transparency, glass remains the correct technical choice in specific extreme operating conditions:
• High-Temperature Systems: Operating environments exceeding 90°C (194°F) where PMMA softens and deforms.
• Aggressive Organic Solvent Contact: Continuous direct exposure to acetone, methylene chloride, concentrated aromatic hydrocarbons, or strong esters.
• Heavy Abrasive Slurry Flow: Applications with severe abrasive particulate contact where uncoated thermoplastic walls would suffer erosion.
6. Primary Industrial and Commercial Applications
• LED Architectural Lighting: Linear light housings, neon-look light pipes, and frosted/milky light diffusers with zero hotspot pixelation.
• Point of Purchase (POP) & Retail Displays: Crystal-clear product pedestals, cosmetic dispensing cylinders, and gravity-feed bulk food dispensers.
• Industrial Sight Glasses & Flow Indicators: Liquid level monitoring tubes, bioreactor vessels, and pneumatic sample transport chutes.
• Hyperbaric & Aquatic Structures: Custom aquariums, cylindrical water features, and pressurized research chambers.
• Medical & Laboratory Devices: Fluid manifolds, centrifuge tube housings, and chemical reagent shields.
Why Source Acrylic Tubing from Welldon Plastics?

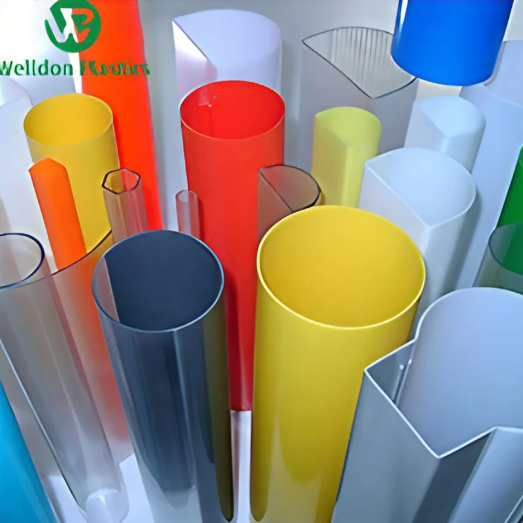

With over 30 years of specialized manufacturing and global export experience, Welldon Plastics manufactures precision-engineered cast and extruded acrylic tubing meeting ISO and international quality standards. We offer:
• Outer Diameters (OD) ranging from 5mm up to 1000mm+ with customizable wall thicknesses.
• High-precision cut-to-length services with diamond edge polishing and CNC end-flanging.
• Clear, frosted (matte/satin), colored, and light-diffusion formulations.
• GRS-certified sustainable recycled PMMA (r-MMA) tubing options for eco-conscious global brands.
Contact Welldon Plastics today for customized technical datasheets, sample kits, and factory-direct procurement quotes for your next project.
