Acrylic (polymethyl methacrylate, or PMMA) is widely specified as an optical-grade, shatter-resistant alternative to glass in retail fixtures, architectural glazing, signage, illuminated displays, and precision-machined components. However, when sourcing acrylic sheets, tubes, rods, or custom fabricated parts, buyers and design engineers frequently face a fundamental specification decision:
Should your project specify Cast Acrylic (GS) or Extruded Acrylic (XT)?
While both materials share the same core chemical family, their manufacturing methods create distinct molecular structures. These differences directly dictate how the material behaves under CNC routing, laser cutting, thermoforming, chemical bonding, and environmental exposure. This guide provides a clear technical comparison to help you choose the right material grade for your exact application and budget.
Understanding the Manufacturing Differences
1. Cast Acrylic (Cell Casting): Cast acrylic is manufactured by pouring liquid methyl methacrylate (MMA) monomer into precision glass cell molds, which are then polymerized in temperature-controlled water baths or autoclaves. This batch process results in an exceptionally high molecular weight polymer matrix with minimal internal stress and superior optical clarity.
2. Extruded Acrylic (Continuous Extrusion): Extruded acrylic is produced continuously by feeding pre-polymerized PMMA pellets into an extruder, melting them, and pushing the molten resin through high-precision calendar rollers and shaping dies. This continuous production method offers high dimensional efficiency and tighter gauge consistency, but yields a lower molecular weight structure with directional orientation.
Key Performance & Machining Comparisons
Laser Cutting & Edge Finish: Cast acrylic is the industry benchmark for laser processing. Under a laser beam, cast PMMA vaporizes cleanly without melting, leaving a crystal-clear, flame-polished edge directly from the machine bed. Extruded acrylic tends to melt and gum during laser cutting, resulting in slight burrs, localized thermal stress, and a softer edge that may require mechanical post-finishing.
CNC Machining & Engraving: Cast acrylic produces fine, dry chips during CNC milling, drilling, and routing, preventing material re-welding on router bits. When laser-engraved, cast acrylic produces a crisp, frosted-white contrast. Extruded acrylic produces sticky swarf that can easily clog cutter flutes and yields a greyer, less pronounced engraving mark.
Thermoforming & Heat Bending: Extruded acrylic softens at a lower temperature (~150°C to 160°C) and flows more easily, making it ideal for high-volume vacuum forming and line bending. However, it exhibits anisotropic behavior—bending along the extrusion direction differs from bending across it. Cast acrylic requires higher, more uniform heating (~165°C to 180°C) and acts like a rubbery sheet with thermal memory, making it far more forgiving against cracking and sagging during complex custom forming.
Solvent Cementing & Gluing: Cast acrylic has superior chemical resistance, meaning it requires slightly longer soaking times with solvent adhesives (like methylene chloride) but creates joint bonds with exceptional structural integrity and minimal stress-crazing. Extruded acrylic bonds rapidly, but its lower molecular weight makes it highly vulnerable to micro-crazing if stressed during gluing.
Thickness Tolerance & Sheet Consistency: Due to precision rolling, extruded acrylic holds tight gauge tolerances (typically ±5% to ±10%), making it the preferred choice for slotted assemblies, picture frames, and profile channels. Cast acrylic, curing freely in glass molds, has a wider gauge tolerance (typically ±10% to ±15%), which must be factored into tight-tolerance interlocking designs.
Technical Comparison: Cast vs. Extruded PMMA
Performance Metric | Cast Acrylic (Cell Cast / GS) | Extruded Acrylic (Continuous / XT) |
Molecular Weight | Very High (Superior structural & chemical integrity) | Medium / Low (More directional orientation) |
Optical Clarity & Light Transmission | >92% to 93% (Near-zero distortion, premium depth) | >91% to 92% (High clarity, minor extrusion lines possible) |
Thickness Tolerance | ±10% to ±15% (Typical mold variation) | ±5% to ±10% (Tighter, consistent across sheet) |
Laser Cutting Quality | Pristine, flame-polished edge with no gumming | Softer edge, prone to melting burrs and thermal stress |
Laser Engraving Effect | Crisp, bright frosted-white appearance | Greyish, less defined contrast |
CNC Milling & Routing | Clean chip clearing, excellent edge polishability | Prone to chip re-welding; requires controlled feeds |
Solvent Cementing / Crazing Resistance | High resistance to solvent stress-crazing | Bonds rapidly; higher risk of chemical stress cracks |
Color & Thickness Range | Unlimited custom colors, thick blocks up to 100mm+ | Standard colors, limited heavy-gauge availability |
Relative Cost Position | Higher production cost (Batch process) | Economical for mass-production and standard sheets |
Surface Protection: Kraft Paper vs. Polyethylene (PE) Film Masking
Acrylic sheets and components are shipped with protective masking to prevent handling abrasion, workshop dust, and transit scratches. Selecting the correct masking type is critical for downstream processing efficiency:

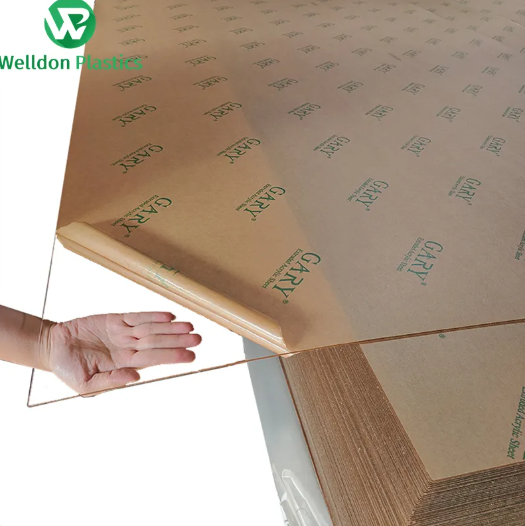

Kraft Paper Masking: Preferred for fabrication, CNC routing, saw cutting, and drilling. Kraft paper stays rigid during cutting, does not stretch or lift at tool edges, and can be easily drawn or marked on for layout verification. It withstands workshop handling better but must be kept dry and removed within recommended storage windows to prevent adhesive hardening.
PE Plastic Film (Clear or Printed): Ideal for thermoforming, cleanroom installations, and general retail distribution. PE film offers excellent moisture resistance, peels off effortlessly in cold environments, and allows immediate visual inspection of the underlying sheet color and optical quality without unmasking.
Welldon Plastics supplies both heavy-duty Kraft paper masking and static-controlled PE protective films tailored to your fabrication and storage specifications.
Sourcing Recommendation & Decision Matrix
Specify Cast Acrylic if your project requires:
undefined Architectural signage, 3D channel letters, and high-contrast engraved logos.
undefined Heavy-gauge panels, museum showcases, luxury cosmetic displays, or aquariums.
undefined Complex CNC machining, diamond edge polishing, or intricate solvent bonding.
undefined Custom pantone color matching, specialty textured surfaces, or GRS-certified eco-resins.
Specify Extruded Acrylic if your project requires:
undefined High-volume, cost-sensitive production runs (e.g., standard retail poster covers, POP leaflet holders).
undefined Tight thickness consistency for push-fit profiles, extrusion channels, and slotted assemblies.
undefined Standard vacuum-forming and fast cycle-time heat bending.
Why Partner with Welldon Plastics?
With over three decades of export experience in acrylic sheet manufacturing and precision component fabrication, Welldon Plastics delivers certified PMMA solutions engineered to international standards. Whether you require virgin-monomer cast panels, tight-tolerance extruded profiles, or GRS-compliant recycled acrylic (r-MMA), our engineering team provides complete material testing, sample verification, and OEM fabrication support to ensure reliable project execution.
